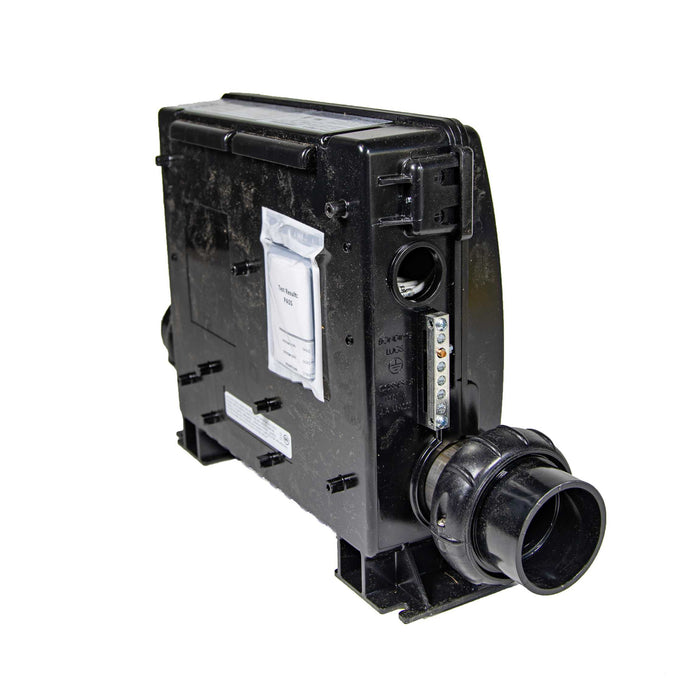

Balboa BP7 Series Control System G6406

Balboa BP7 Series Control System G6406

With 7 relays, the BP7 has 32 different setups and can power a spa with 1-4 pumps, including Microsilk systems.

The BP7 Series System Can Operate:

• (1) 4.0 KW Stainless Steel Heater Assembly (M7 Heater Assembly Included)
• (1) Two Speed Pump 120 Volt or 240 Volt
• (1) Single Speed Pump
• (1) Blower 120 Volt or 240 Volt
• (1) Ozonator
• (1) Spa Light

(If installing a circulation pump it must run at least 23 Gallons Per Minute)

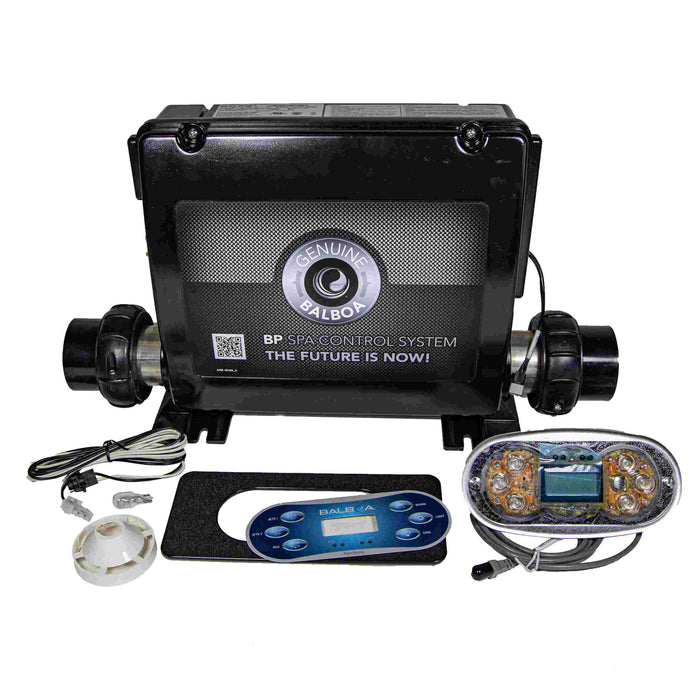

The Balboa BP7 Series Control System Includes:

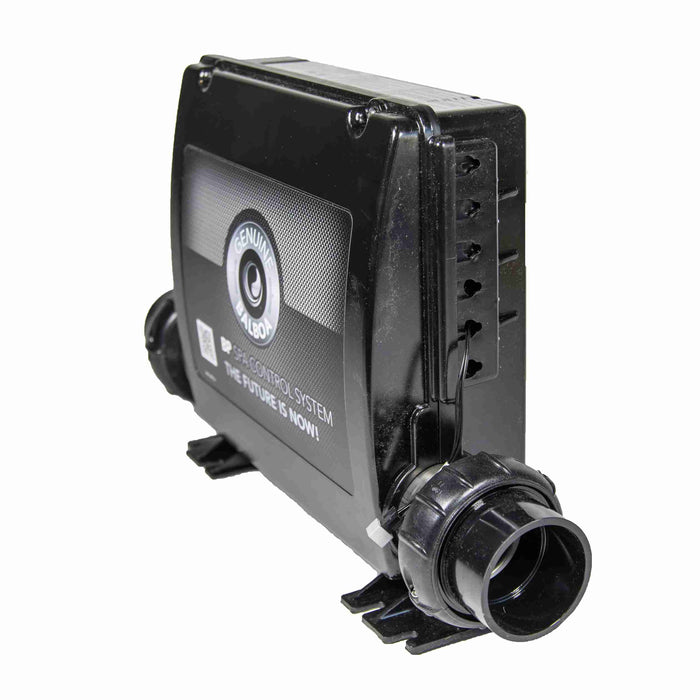

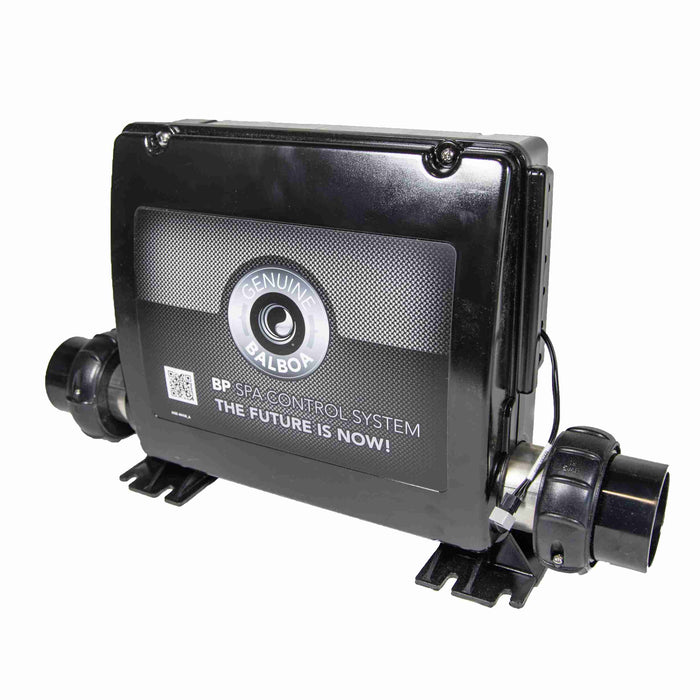

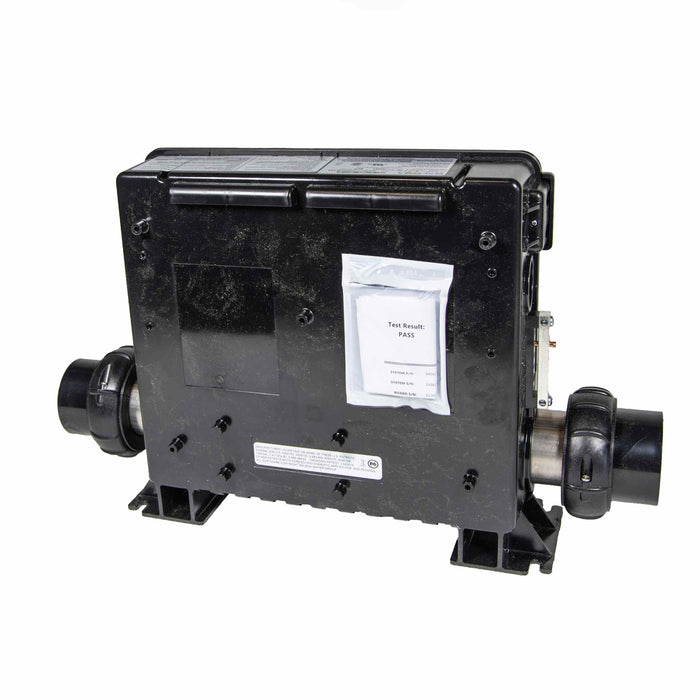

• Control Pack (230 Volt Only)

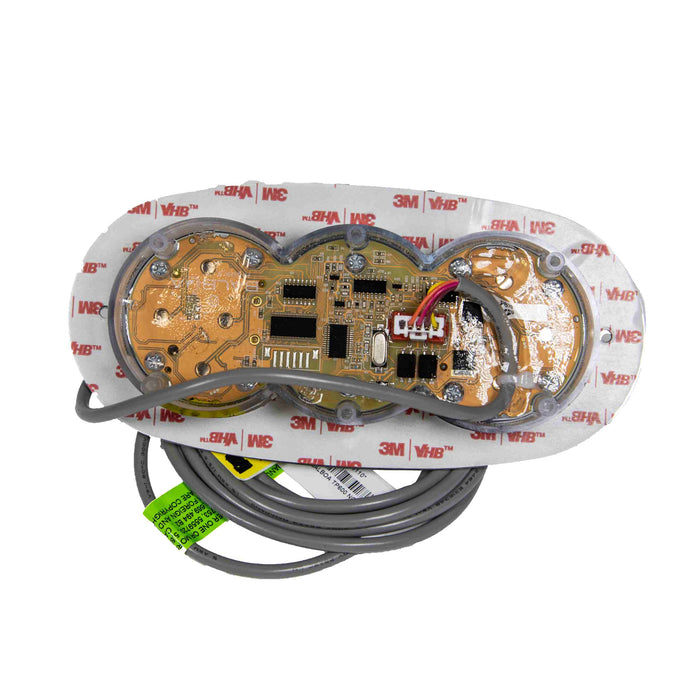

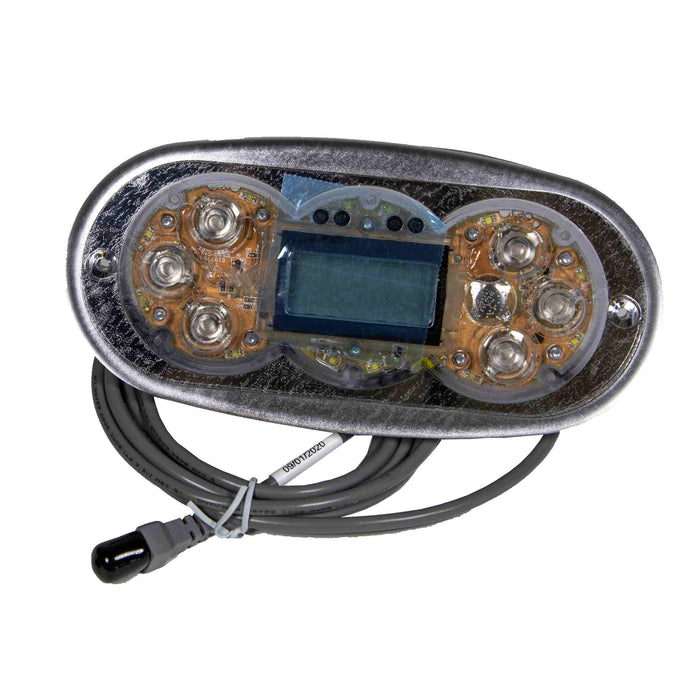

• Balboa Top Side Control Panel TP500 (Jets, Menu, Light, Aux, and Temperature Up (Warm) Temperature Down (Cool) Buttons.)
• Balboa Stainless Steel Heater Assembly with M7 Flow / Temperature sensors

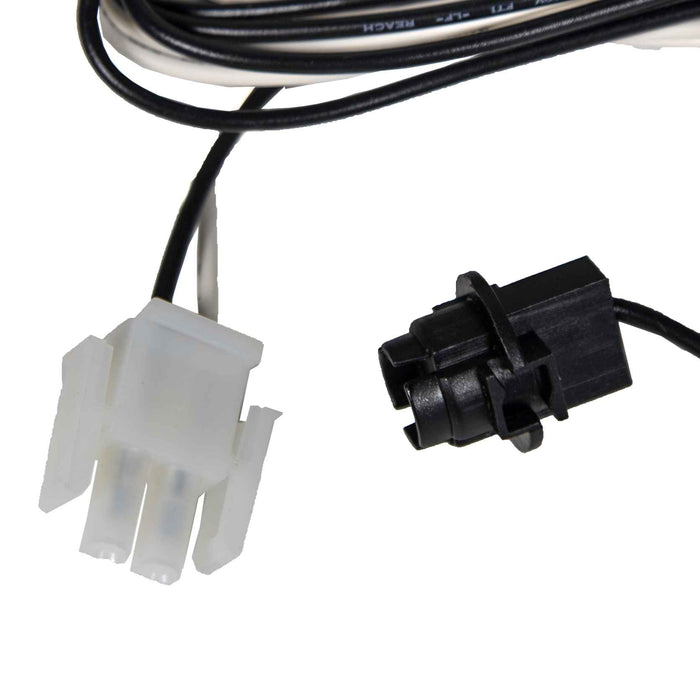

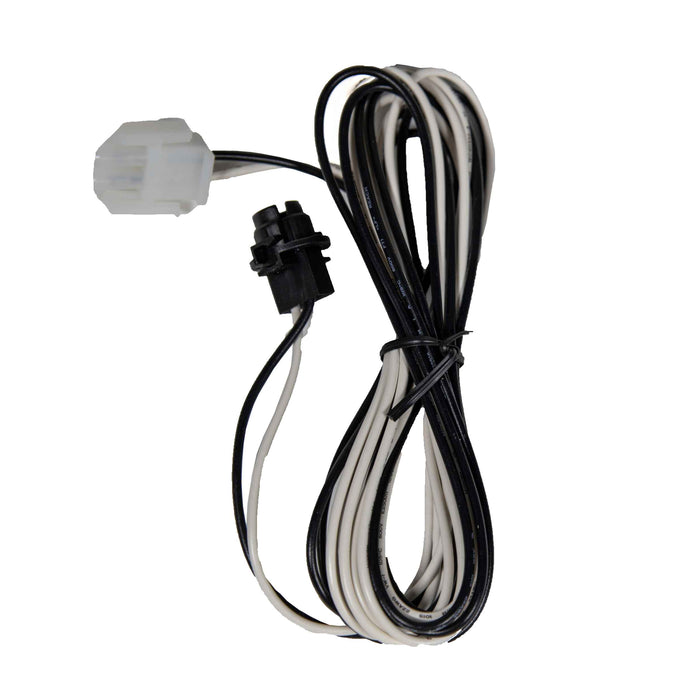

• Light Housing Assembly (Excludes Light Lens or Bulb) (Can operate a standard light or LED light)
• Panel Overlay
• Top Side Control Panel Adapter Plate
• Cords for Pumps, Blowers, etc. Sold Separately if Needed

BP7 Series Features and Benefits:

• 7 Relays - The BP7 has 32 different setups and can power a spa with 1-4 pumps, including MicroSilk systems
• Wi-Fi Enabled
• Supports all BP ancillary products (Control My Spa, Balboa Bluetooth Audio,
  Chromozon3 and Status Pro)
• Supports all TP and SpaTouch topsides
• Replaces failure-prone mechanical pressure/flow switch
• Can be plumbed to either suction or pressure side of pump
• 120/240V convertible power
• Custom plastic enclosure
• M7 flow/ temperature sensors
• Rigorously tested
• US & Canadian safety approvals

Thanks to a combination of Balboa engineering and patented M7 technology, we now offer the highest component reliability in the business with fewer returns and longer life expectancy than traditional non-M7 systems. At Balboa, innovative engineering and state-of-the-art manufacturing go hand in hand to deliver a quality, cost effective product that will provide years of reliable, headache-free service.

Patented M7 Technology Includes:

• Smart Sensor Technology
• Multiple High Limit Safety Systems
• All Safety Functions always active
• Both Sensors are Identical
• Sensors monitor each other via software to regulate spa functions
• Ensures a proper operating environment for heater element
• No Sensor Installation in spa wall
• No Pressure Switch problems

Heater Element and Tube:

• Enlarged bend radius
• No wire ties
• Minimizes debris collection

Heater Tube:

• No welds required
• Front mounted
• Easy access for service

The BP7 Series Contro System Can Be Used to Replace The Following Systems:

• Balboa VS300
• Balboa VS500Z
• Balboa VS501Z
• Balboa VS501SZ
• Balboa VS503SZ
• Balboa VS504SZ
• Balboa VS510SZ
• Balboa VS510DZ
• Balboa VS511Z
• Balboa VS511SZ
• Balboa VS513Z
• Balboa VS514SZ
• Balboa VS515Z
• Balboa VS515SZ
• Balboa VS520Z
• Balboa VS520SZ
• Balboa VS520DZ
• Balboa VS525Z
• Balboa BP501G1
• Balboa BP501G2
• Balboa BP501G3

Note:

• Designed to be installed by a professional spa or hot tub technician

Balboa G6406
