Item #: CS6009-US2
$529.95

This item is IN STOCK

This item is TEMPORARILY OUT OF STOCK

Usually Ships Within 1 Business Day

Notify me when restocked

Item Details

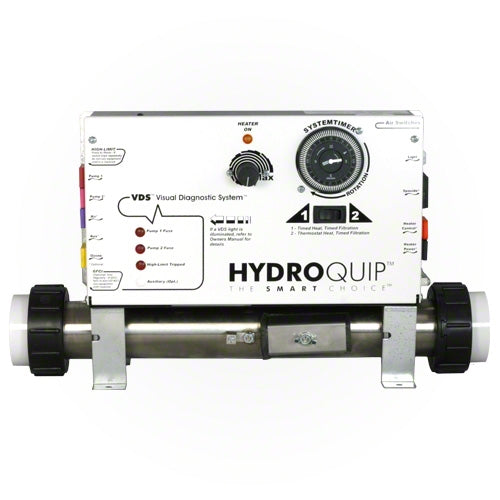

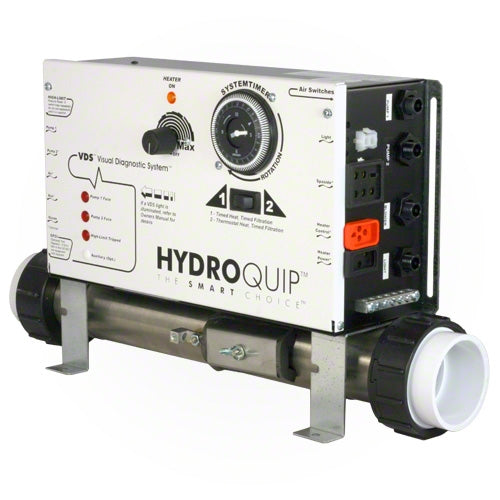

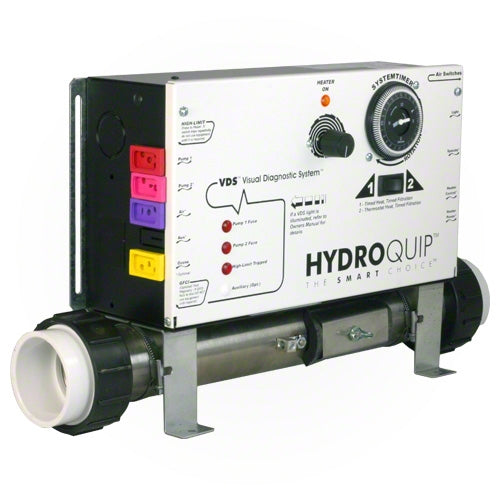

HydroQuip Slide Series Air Control System CS6009-US2

The HydroQuip CS6000 Slide series air control systems are the most versatile Electro-Mechanical control units with its one of a kind vertically adjustable heater. Mount the heater where you need it - anywhere along the back of the control box, underneath, or remote!

The HydroQuip CS6009-US2 Control System Can Operate:
  • 1- 5.5 KW Stainless "SLIDE" Heater Assembly
  • 1- One or Two Speed Pump Either 120 Volt or 240 Volt
  • 1- One Single Speed Pump
  • 1- Blower
  • (A Total of 2 Pumps and a Blower)
  • 1- Ozonator (120 Volt or 240 Volt)
  • 1- Spa Light
  • (All Circuits are convertible to 120 or 240VAC)

The HydroQuip CS6009-US2 Control System Features:
  • 120 Volt / 240 Volt Convertible Power
  • 1.375 KW at 110 Volts / 5.5 KW at 240 Volts "SLIDE" Heater
  • "VDS" Visual Diagnostics
  • Lighted Smart Cords.
  • Full Range Thermostat
  • Ozone Circuit (120 Volt / 240 Volt)
  • Light Circuit (12 Volt)
  • Heater "ON" Indicator Light
  • "Paint-Lock" Rust Proof Enclosure
  • Detailed Owners Manual
  • Detailed Wiring Diagram
  • 1 Year Manufacturers Warranty Standard

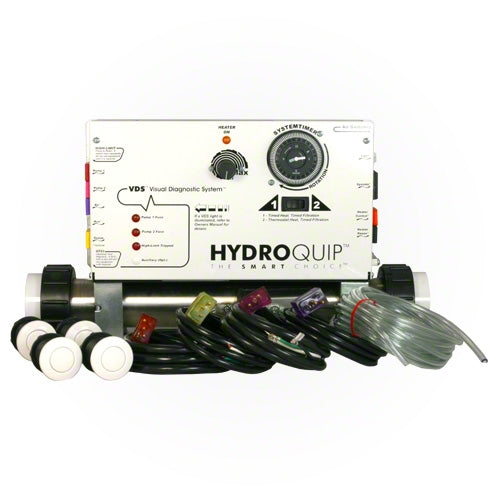

The HydroQuip Water Pro CS6009-US2 System Includes:
  • CS6009-US2 Control System
  • 5.5 KW Stainless "SLIDE" Heater Assembly
  • Pump, Blower and Ozone Cords

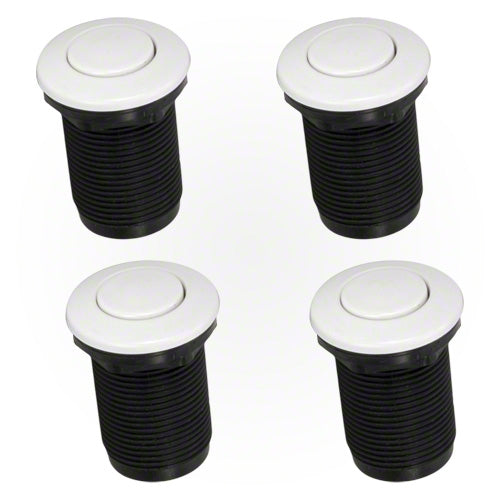

  • Air Transmitters
  • Air Tubing
  • Tailpieces with Gaskets

Dimensions:
  • 15" Wide X 11" High X 5" Depth

Optional Top Side Control Panels:
  • 4 Button Analog 34-0037A-S
  • 4 Button Digital 34-0037D-S
