Air Switch SPDT ACA111A
Item #: ACA111A
$7.59
Item Details

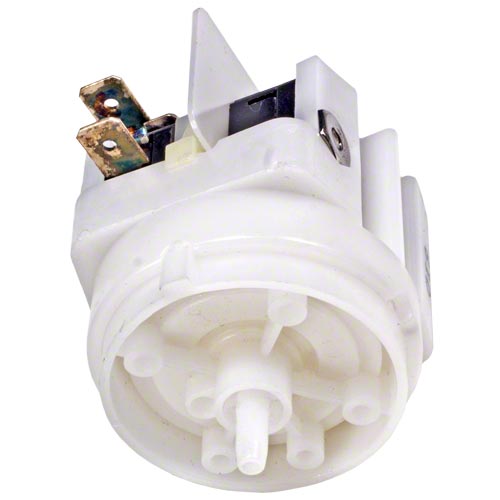

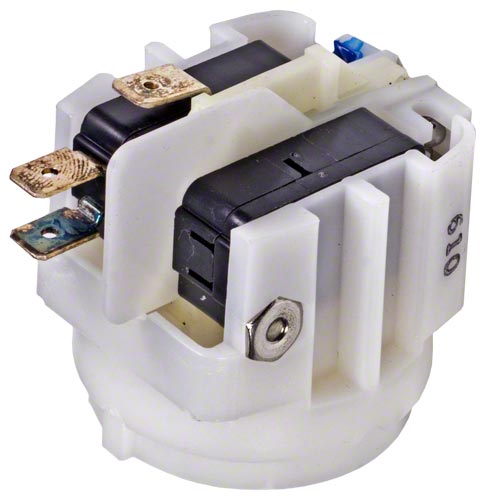

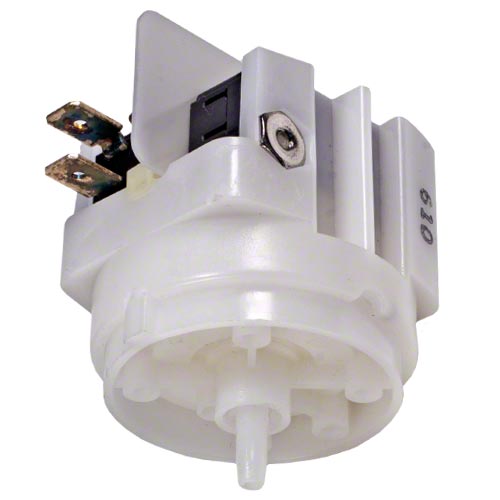

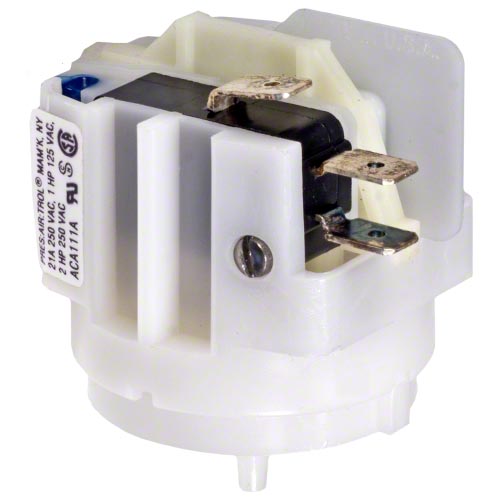

Presair Air Switch ACA111A
Air Switch replaces the following Products:
Air Switch replaces the following Products:
- Hergair # 6861-ACO-U106
- SPDT
- Latching
- 1/8" Bottom Center Spout
- Center Mount
- 21A 250 VAC, 1 HP 125 VAC
- 2 HP 250 VAC
- Mounts with # 4 self tapping screws.
- Single Pole Double Throw (SPDT) Switching Element - A SPDT switching element has one normally open, one common and one normally closed terminal. Three terminals mean that the switch can be wired with the circuit either normally open (N/O) or normally closed (N/C).
Presair ACA111A
