Waterway NEO 2100 Spa Control System, 8-Button Control Panel and 5.5 KW Heater

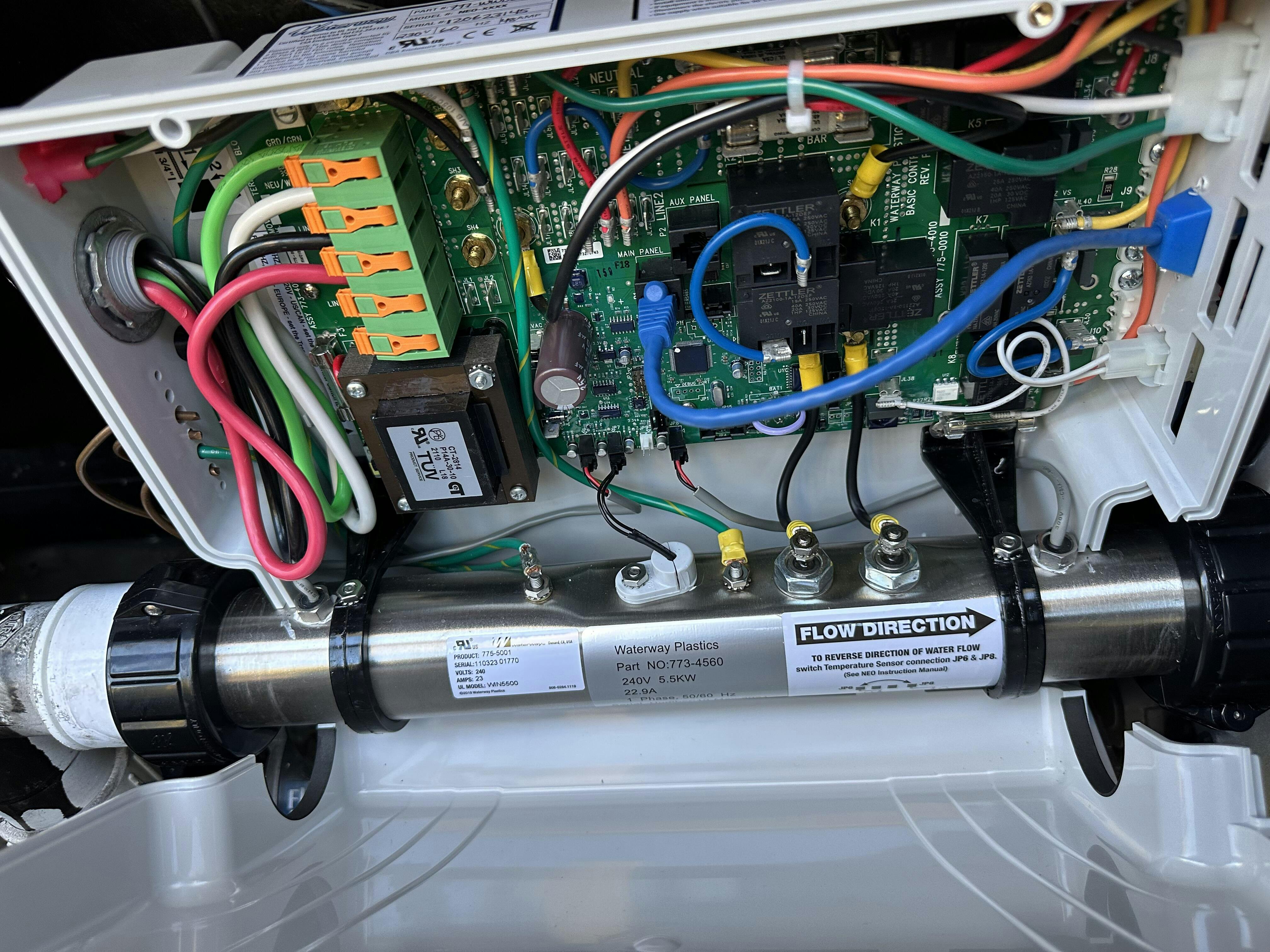

Waterway NEO 2100 Spa Control System

The innovative NEO 2100 system offers 64 different configurations which allows it to adapt to almost any hot tubs requirements. The spa control system comes standard with an easy to use topside control panel with 1.8" color LCD display.

NEO 2100 Control System Can Operate:

• 1- 5.5 KW Stainless Steel Heater Assembly (Included)
• 2- Two Speed Pumps
• 1- Blower
• 1- AV Port
• 1- Ozonator
• 1- Light
• (All Pump and Ozonator Circuits are convertible to 120 or 240 Volt Operation. The NEO 2100 Control System can operate a total of (2) Two Speed Pumps or (1) Two Speed Pump and (1) One Single Speed Pump standard. If you need to operate more pumps you can add Daughter Board 1 (Part # 775-0501) which will allow you to (1) more two speed pump or (2) more single speed pumps. If you need even more you can add Daughter Board 2 (Part # 775-0502) which will allow you to add (2) more two speed pumps or (4) more single speed pumps Daughter boards are not included and are sold separetely).

NEO 2100 Control System Includes:

• Waterway NEO 2100 Control System
• Waterway NEO 1100 6-Button Topside Control Panel with LCD Screen
• Stainless Steel Heater Assembly with Electronic Thermal Sensing System

NEO 2100 Control System Features:

• External Equipment and Topside Panel Connections for easy access
• Modular Equipment Expansion Capabilities
• Toggle Terminal Connections for easier installation
• Each circuit can operate at either 120 Volts or 240 Volts depending on hot tub equipment specifications (field adjustment required)
• Converts from 60 Hz to 50 Hz
• Wi-Fi Ready
• NEO 1100 Topside Control Panel with 1.8" color LCD Display
• Easy menu navigation
• Multi languages (English, Spanish, French, German)
• Real-Time Clock
• UL Certified for the US and Canada
• CE compliant for Europe

Waterway 777-WW99004
